MY-800-325 Laser seam tracking sensor

Embedded tracking sensors utilize laser light to illuminate the weld surface, forming a laser beam that is captured by a high-definition camera，Embedded technology roadmap employs high-speed CMOS + FPGA parallel computing, enabling the sensor to perform calculations autonomously without an industrial control computer, achieving true edge computing. Through algorithm processing, the three-dimensional features of the weld are converted into structured information, including weld coordinates, misalignment, and gaps. This information is transmitted to the robot controller, providing the robot with the necessary welding trajectory and process parameters, guiding the robot to perform welding or correcting workpiece deviations in real time, thus achieving a perfect welding operation. Compared to other solutions, laser weld tracking offers advantages such as non-contact operation, high precision, high speed, and strong adaptability.

Overview
Spport robot brand

The sensor adopts linear structured light measurement, which has fast line imaging speed, no contact, and no mechanical movement; Strong adaptability, capable of outputting welding seam parameters; Fully embedded, with external industrial control computers and many other advantages, it is widely used in different types of automated welding. Regardless of the welding process, we can provide reliable support and stable performance to ensure excellent results in different welding scenarios.

The sensor is suitable for the most demanding applications, as it is insensitive to stray light, water and dust (IP67) and immune to electromagnetic radiation (EMC).

With Powerful Function.

01. position and deviation correction

The positioning and deviation correction function is used for flexible welding scenarios of different workpieces with the same model but inconsistent tolerances. This function ensures that no manual intervention is required when switching workpieces, and the robot is guided by the positioning and deviation correction system to achieve precise welding,

Two-Point positioning suitable for straight line 2D offset welds.

Multi-Point Positioning Suitable for multi-segment 2d offset welds

Segment Positioning Suitable for multi-segment 3d offset welds.

02. Real-time Tracking

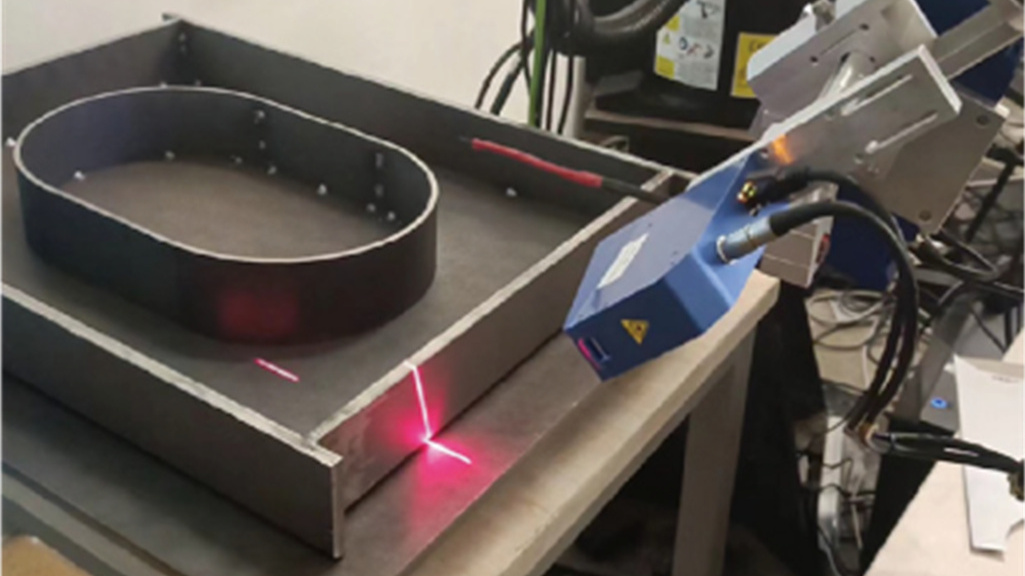

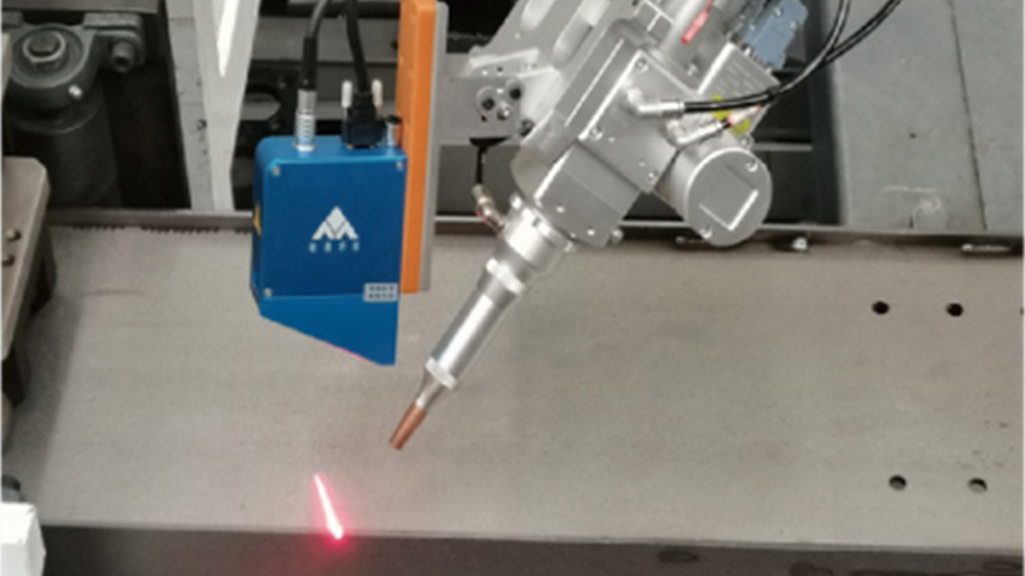

The real-time tracking function is used in welding scenarios requiring high efficiency and no spatial interference. The sensor is fixed relative to the welding torch, and the welding torch automatically adjusts the welding path according to the 3D coordinate data.

03.Scanning and Automatic welding ,

The scanning and automatic welding function allows the sensor to first collect geometric information of the welds. This function is suitable for high- reflective,narrow welding spaces and complex weld scenarios.

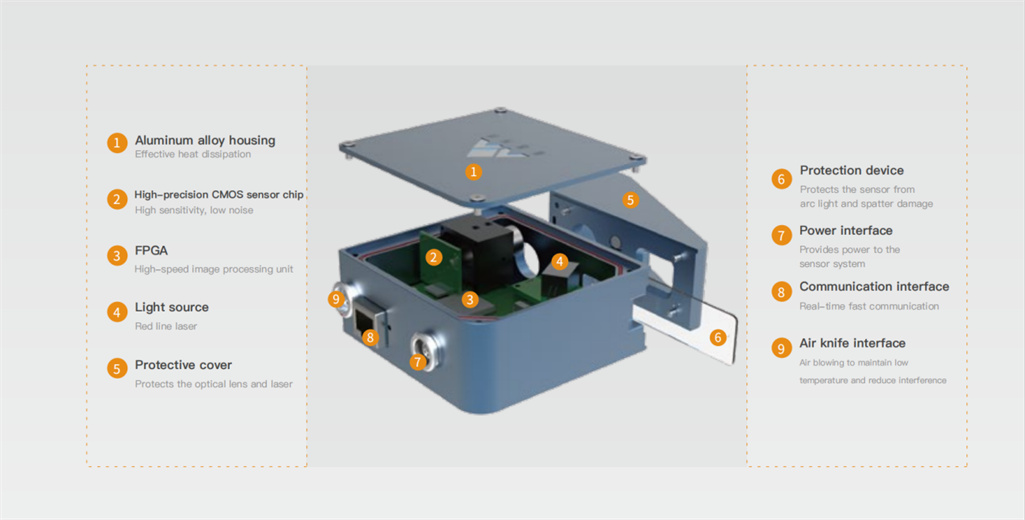

MY-800-325 Laser seam tracking5.jpg

LaserSeamTracking

Laser Seam Tracking can detect high, low and left and right weld deviations.
Can detect splicing welds with small gaps.
Solve the problem of welding seam tracking for thin plate splicing.

The Optimal observation distance is about 500 mm.

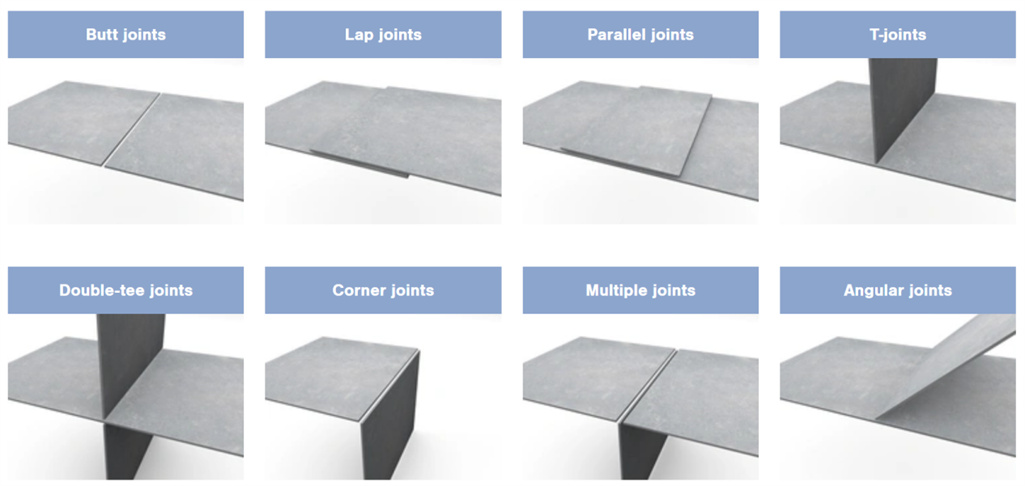

Supportweldtype

V-groove weld
Fillet weld
Hemming weld
Splicing weld
Lap welds, etc.

MY-800-325 Laser seam tracking8.jpg

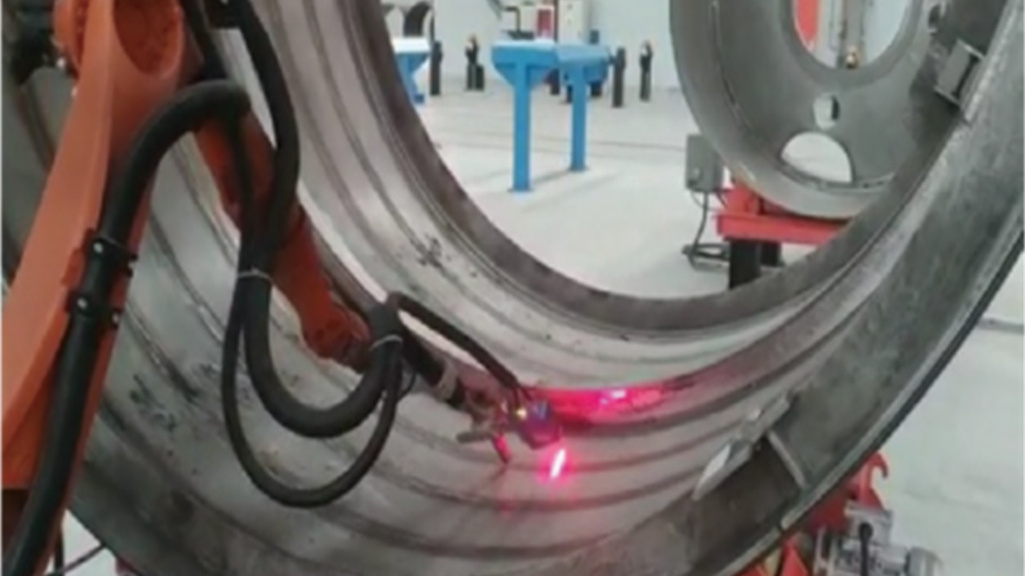

Long distance of vertical viewing,avoiding interference avoid interference ,Suitable for long-distance positioning. suitable for Steel Structure and Construction Machinery shipbuilding Industry .

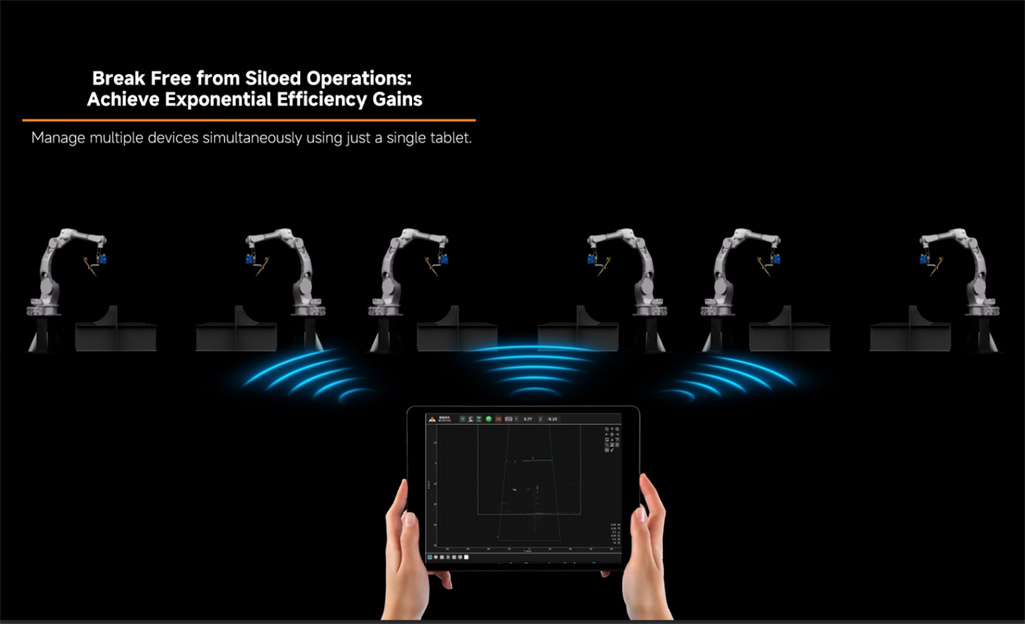

With the WIFI module, multiple sensors can be debugged using a single Windows tablet.

MY-800-325 Laser seam tracking9.jpg

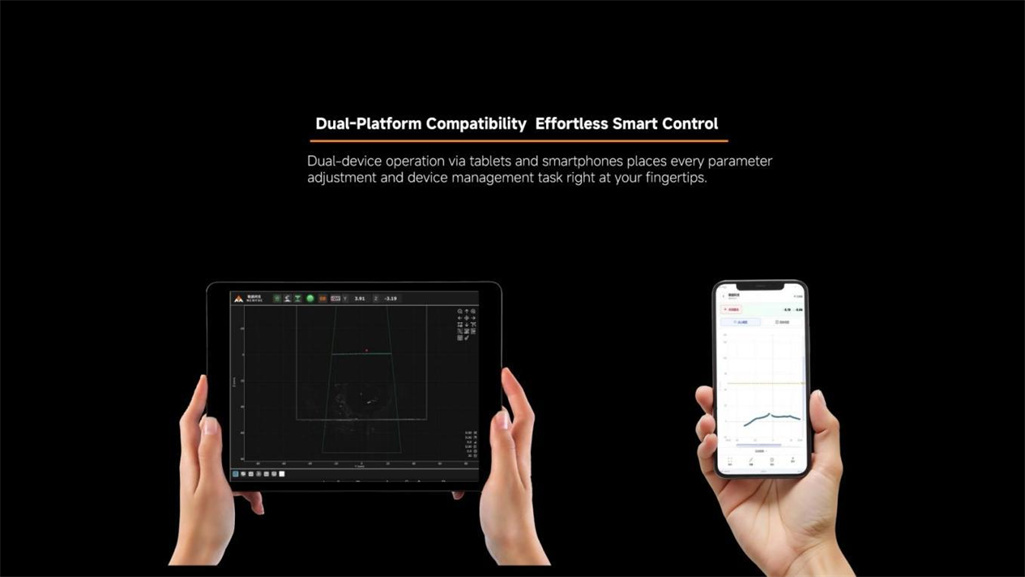

Supports multi-platform communication for PAD and mobile phones

MY-800-325 Laser seam tracking10.jpg

NO	Item Name	Specifications	Qty	Remark
1	Switch	KeepLink	1	KP-9000-104GTP	R
2	Laser seam tracking sensor	MY-800-325	1	SN:20250318LDWPR05	R
3	Sensor power cable	15 Meter	1	conventional 15m	R
4	Sensor communication cable	15 Meter	1	conventional 15m	R
5	Communication line between industrialcomputer and robot	NT-PT-15m	1		R
6	Industrial computerpower cord	DC 12V	1		R
7	Arc baffle	MY-Blocked arc board	1		R
8	Sensor protection lens		5		R
9	Sensor insulation board	MY-insulating	1		R
10	Screw accessories	1 set	1		R
11	Pneumatic head	POC6M5	1		R
12	Certificate	/	1		R
13	Warranty card	/	1		R

3D Robot Vision.

Give vision and intelligent to your welding Robots.

Fast ,Accurate,Reliable,Easy to use.

Very high speed part and joint finding.

Long stand-off distance seam tracking.

Accurate and automatic computation of the robot trajectories.

Compensation for fit-up and parts preparation inaccuracies.

Save welding filler metal and reduce waste.

Reduce cycle time and cost per weld.

Robust hardware and software designed by robotic welding experts.

High intuitive interfaces

Benefit from our internationally recognized service.

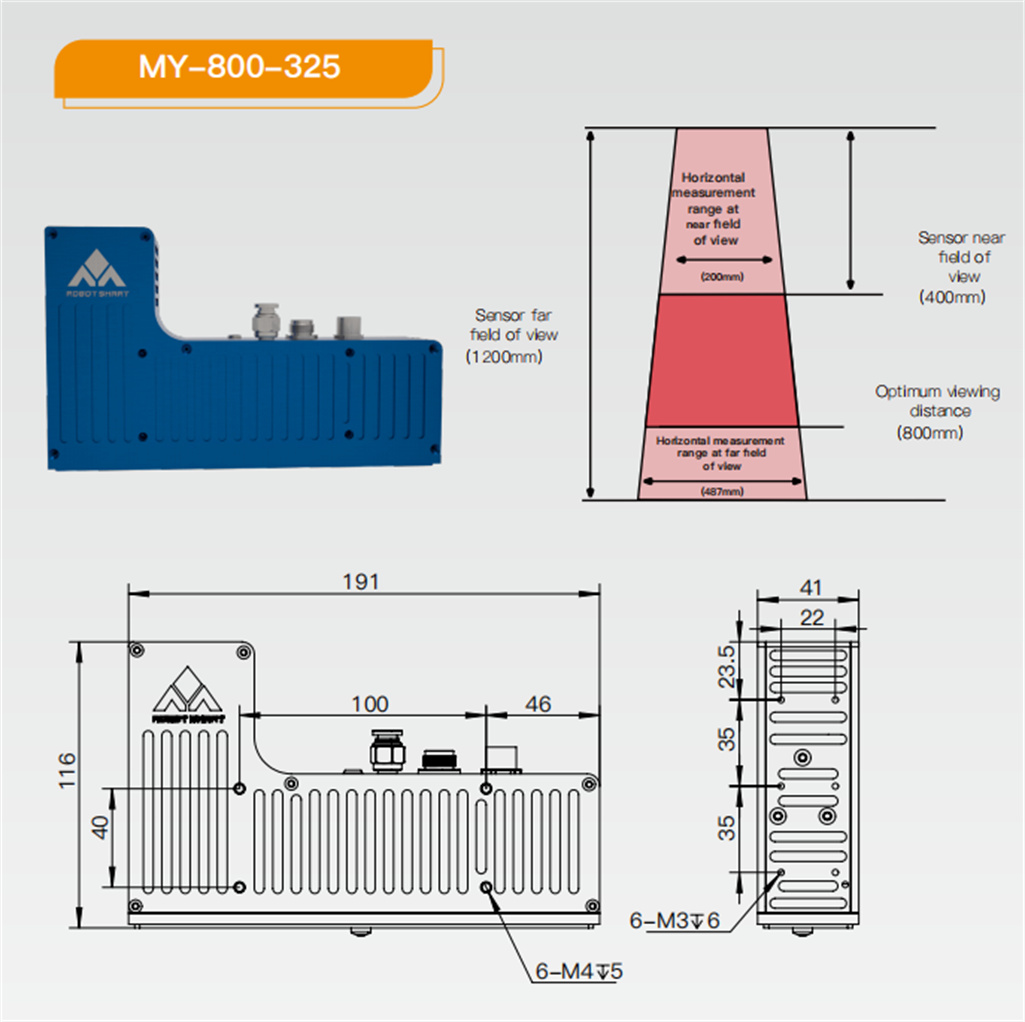

MY-800-325 Laser seam tracking11.jpg

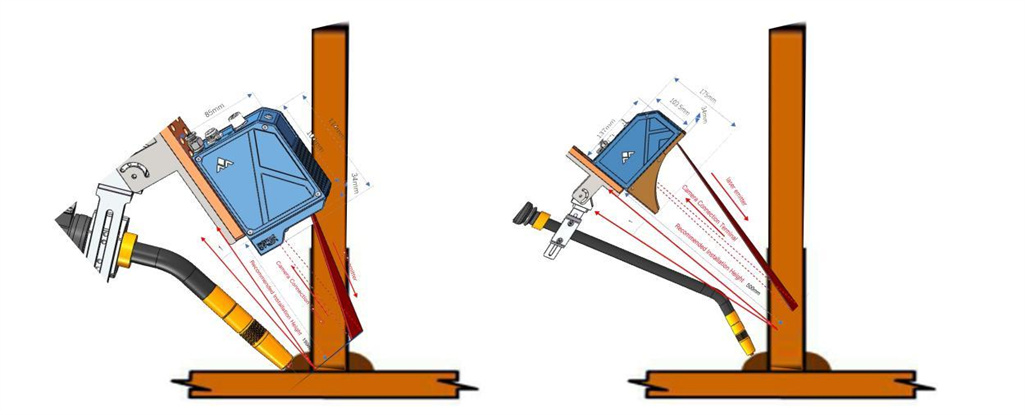

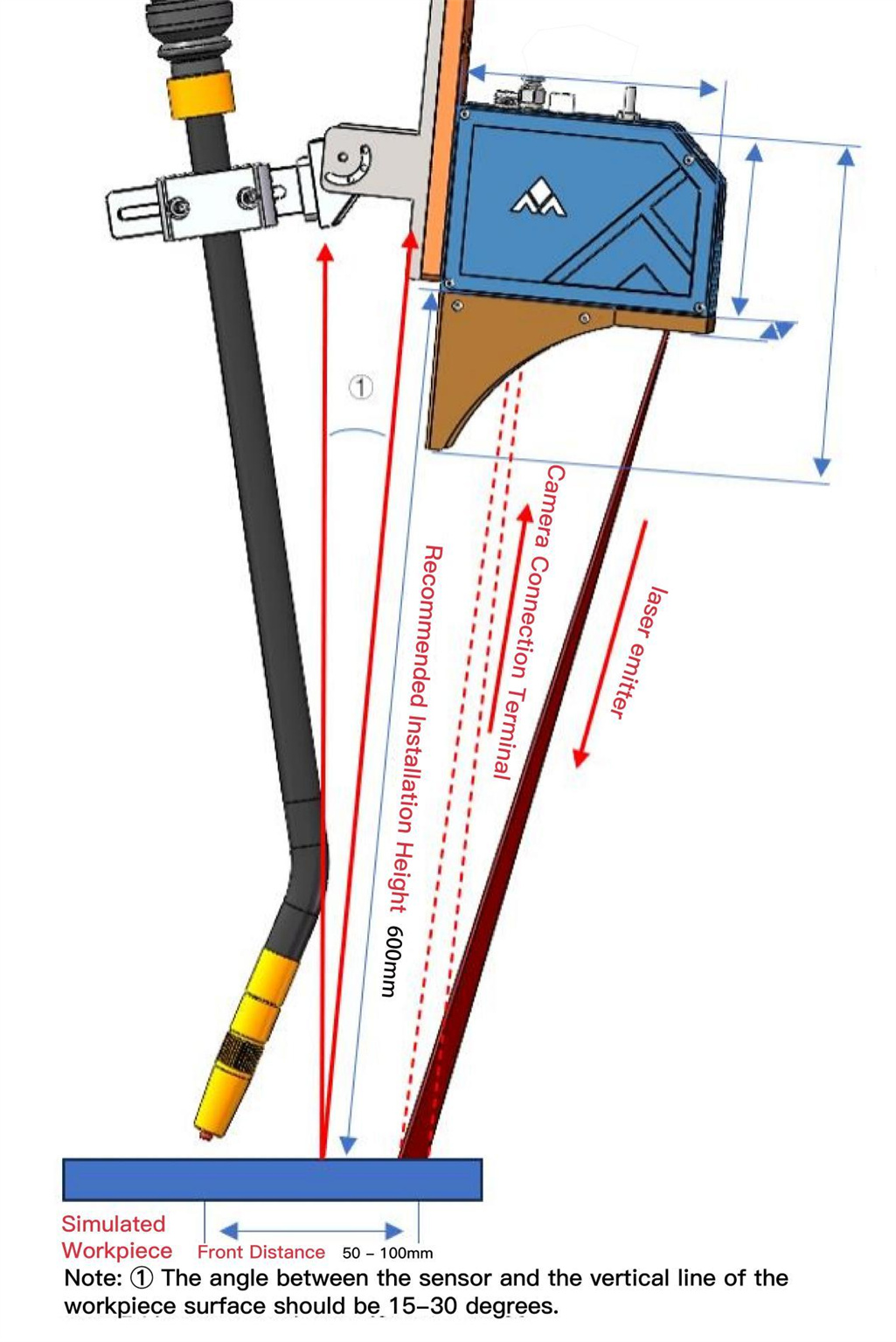

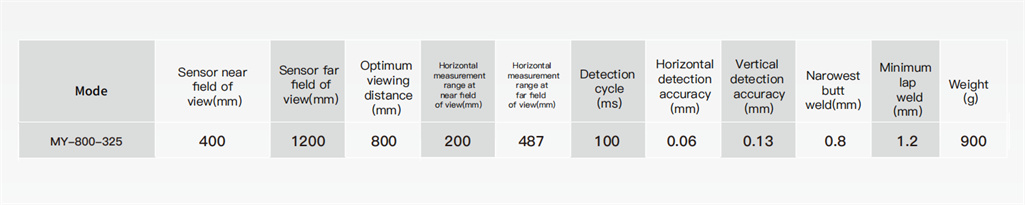

Please select the type reasonably according to the actual scope of application, to avoid workpiece collision sensor, robot load generally normally need 20KG .

MY-800-325 Laser seam tracking12.jpg
